Thank you for your time to check our machine details ,we have different kinds of roll forming machine to meet your requirementsÂ
also we can design the machine according to your roofing sheet profile drawings ,and if you need we can suggest you some drawings alsoÂ
Â
A. Uncoiler.......................................................................1 unit
B.Main roll forming machine  ·································· 1 unit
C. Control panel·····················································1 unit
D. Hydraulic pump..............................................................1 unit
E.Accepting table................................................................1 unit
Details of each roll forming machine composition:
(1) 4 feet manual uncoiler
(2)Capacity of the uncoiler  : 5 tons
(3) Range of segment expansion  : 460 ~ 515 mm
Main roll forming machine
1. Forming stations  : 18 stations
2. Material of roller  : 45# steel heat treatment HRC50 and surface is being hard chrome;
3. Shaft : Dia 80mm, high frequency surface treatment and grinding process;the material is 45#steel.
4. Horsepower  : 7.5KW
5. Transmission  : Chains and gears
6. Forming speed  : 20 ~ 25 M/MINUTE
7. Forming thickness : 0.2 -0.7mm
8. Cutting:Material of blade: Cr12; heat treatment HRC59~61
Control panel
(1) Voltage, Frequency, Phase:Â Customizable
Hydraulic pump
Hydraulic system for cuttingÂ
The motor is used to drive the hydraulic pump ,which enables the hydraulic   oil to drive the hydraulic motor and then drives the main machine.
Accepting table( one manual for free)
1.material: welded steel rube and the rollers with rubberÂ
2.also suggest you the automatic stacker for the highe speed roll forming machineÂ
__________________________________________________________________________________________________________
Our factory is specialized in different kinds of roll forming machine ,also we can design the machine according to you products details :
Roofing and Wall Panel Roll Forming Machine ,Glazed Tile Roll Forming Machine  ,Roof Ridge Cap Roll Forming MachineÂ
Shutter door roll forming machine ,Pu foam shutter door production line,Door Frame Roll Forming MachineÂ
Ceiling keel roll forming machine,Tee grid roll forming machine ,C& Z Purlin Roll Forming Machine
Floor decking roll forming machine,Pipe roll forming machine and bending machineÂ
Gutter roll forming machine,Guardrail Roll Forming Machine,Stone coated steel tile production lineÂ
Sandwich panel production line , Slitting Line ,Curving machine,Decoiler,Cutting and bending machine
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support.
* View our Factory.
Â
After-Sales Service
* Training how to instal the machine, training how to use the machine.Â
* Engineers available to service machinery overseas.
_______________________________________________________________________________________________________
Packaging | |
Packing method: nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. The seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.  | |
__________________________________________________________________________________________
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no,I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free. If after warranty period,we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
7. You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
8:If need more machine pictures or videos,welcome to contact me.
Â

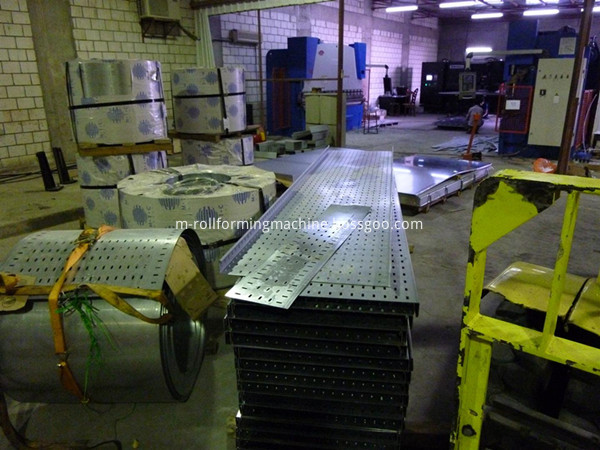

This Cable Tray Machine automatically adjusts to produce the Cable Tray according to client requirement. The Cable tray machine is controlled by PLC, fully automatic working. It can automatically record the production quantity, automatically measure the length. Cable tray machine has Trouble Display and Emergency Stop function. All the Cable tray machine working actions can be controlled by control panel. The Width range is from 100mm to 900mm.
Cable Tray Machine
Cable Tray Roll Forming Machine,Tray Forming Machine,Cable Tray Manufacturing Machine,Cable Tray Making Machine
