800 Kg/H Powder Coatings Mill Grinder Grinding Equipments                    LYF SERIES GRINDING SYSTEM
This series of grinding system has functions of high-speed crushing, air classifiering , double cyclone separating, screening, and fine powder collecting, etc., with noise ≤80DB. Best particle size distribution with particle size which can be adjusted freely from 18-60um. This series grinding system has good ATEX anti-explosion design and performance, which has been evaluated by international authorized orgnizations.
Features of 800 Kg/H Powder Coatings Mill Grinder Grinding Equipments:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
1. Low noise
2. Adjustable particle size distribution
3. High output
4. Temperature monitoring of mill chamber
5. High recovery, ≥ 98%
6. Easy for cleaning and maintenance
7. In accordance with the standard of European ATEX anti-explosion design
8. Safe to operate
9. Accurate weighting system for the finished powder coating.
Â
Main Technical Parameter of 800 Kg/H Powder Coatings Mill Grinder Grinding Equipments:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
| Model | Output (Kg/h) |
Mill Speed (rpm) |
Motor Power (kW) |
Classifier Motor (kW) |
Fan Power (kW) |
Dimension (mm) |
| LYF-10 | 150-200 | 7000 | 7.5 | 1.5 | 7.5 | 6000*2000*2200 |
| LYF-20 | 250-350 | 6000 | 15 | 3 | 18.5 | 7000*2800*3000 |
| LYF-30 | 350-500 | 5600 | 18.5 | 4 | 22 | 8000*2800*3000 |
| LYF-45 | 500-600 | 5600 | 22 | 4 | 37 | 9000*3500*3500 |
| LYF-60 | 800-1200 | 4800 | 37 | 5.5 | 55 | 10000*3500*3500 |
| LYF-70 | 1000-1500 | 4800 | 37 | 5.5 | 75 | 11000*3500*3500 |
Details of 800 Kg/H Powder Coatings Mill Grinder Grinding Equipments:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
1. The main mill disc with pins have passed the testing through the balance measuring instrument. This design can reduce the noise and attrition.
2. The silencer on the end of the fan can reduce the noise effectively.
Company Introduction
Lingyu Powder Machinery Co., Ltd, established in 1999, is specialized in researching and manufacturing of powder coating processing equipment, with strong technical strength and abundant practical experience. Now we have hundreds of different machine models and get certifficates of CE approved by TUV Cermany, ATEX by Sira England and PSR11 by ECM Italy.
Following the principle of "Quality first, Credit first and customer first", we are able to provide commissioning and installation support, formulation guidance and 24-hour aftersale service, which help us win great trust and support from customers.
Now Lingyu has become a well-know manufacturer for powder coating processing equipment both at home and abroad, with No. 1 market share. Products have been successfully exported to 50 countries and regions. Friendly business relationship with many world famous powder coating manufaturers has been established and kept in long-term.
We sincerely welcome you to our company for business visit and technical communication. Together with our sister company-Longcai Advanced Materials, mainly specialized in powder coating resins, we'll try our best to provide the best solution of powder coatings to our customers. Â
Â

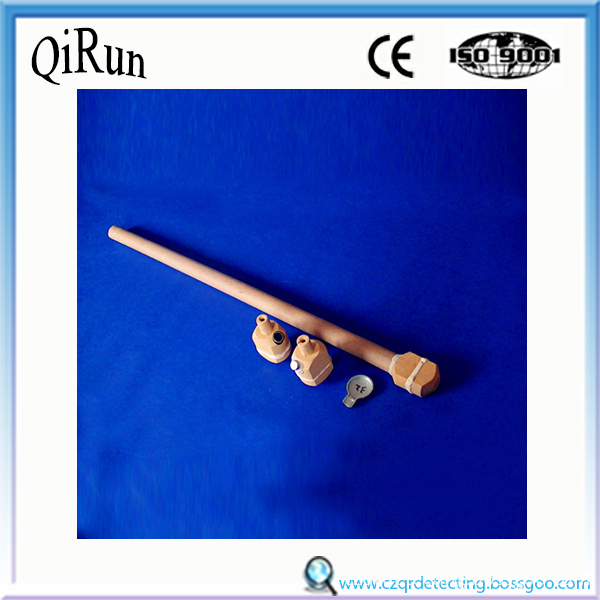

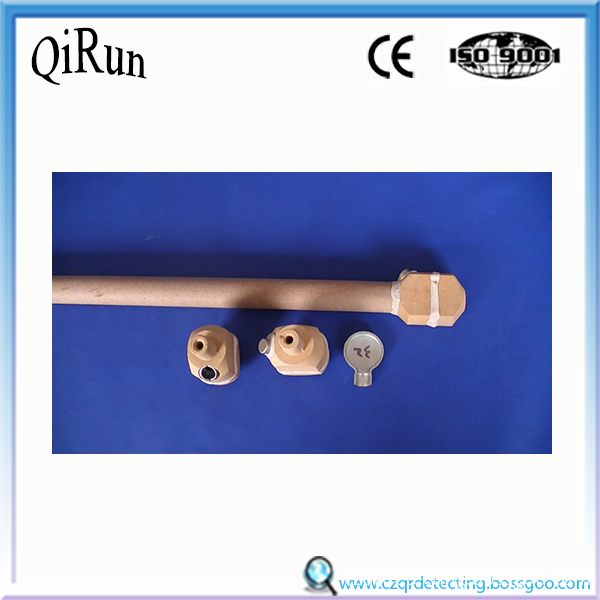

Integrating molten iron temperature measurement and sample collecting process together, supported by temperature measuring lance and secondary instrument,The process of measuring molten iron temperature, collecting sample, analyzing spectrum and other analysis for data of elements content that are needed will be finished in a single operation. The operation is more simple and convenient and the data is more reliable. The compound probe is widely used in the iron smelting industry.
