Fully Auto Single Unit Wire Barbed Machine

Model NO.: CS-B
Barbed Space: 3, 4, 5, 6 Inch
Theoretical Production: 17m/Min
Total Weight: 1000kgs
Dimension: 3100*1000*1150mm
Trademark: JIAKE
Transport Package: Plastic Package in The Container
Specification: 1000kgs
Origin: Hebei, China
Fully auto single unit wire barbed machine (CS-B)

Fully Auto Single Unit Wire Barbed Machine


Description:
  1. Application: The machine can produce barbed wire which is extensively used in national defenses, military, railway, agriculture, animal husbandry and other industries.
  2. Suitable material is Galvanized steel wire or PVC coated wire.
  3. Advantages: material saving and high capacity.

Technical Parameter:
Specification Unit CS-A CS-B CS-C
Motor power KW 2.2 2.2 2.2
Main drive shaft speed r/min 402 355 355
Strand wire diameter mm 1.6-3 2.0-3 1.6-2.8
Barbed wire diameter mm 1.6-2.8 1.6-2.8 1.6-2.8
Barbed space inch 3, 4, 5, 6
Theoretical production m/min 20 17 16.5
Twisted number   3-5   7
Total weight KG 1200 1000 1000
Main part size mm 1950×950×1300



Take-twisting part size mm 1760×550×760



Dimension mm   3100×1000×1150 3100×1000×1150

Finished Products:
we have 3 type fo barbed wire machine to make difference barbed wire for clients requirement.
Fully Auto Single Unit Wire Barbed Machine

Fully Auto Single Unit Wire Barbed Machine

cs-b

Loading Picture:
Fully Auto Single Unit Wire Barbed Machine

Certification:

Fully Auto Single Unit Wire Barbed Machine

Contact :
if you have any needs, please feel free to contact me, i will reply ASAP
Fully Auto Single Unit Wire Barbed Machine


Customized Professional Plastic PE Spiral Wrapping Band


Product Description


Specification

Spiral Wrap Tubing , Cut off the needed length and to fix one and with ties,then wind the bundled tie clockwise.


Bundle force: The product is easy to dismantle when using and changing.The bundle force will not change when the original bundle tie is reused.
Material:PE
Color:Standard in natural.Black and other are colors available upon request.( Electrical Wire Spiral Wrapping TubeColorful Spiral Wrap Tubing,)
Description:
1. Flexible construction enable bands to follow wire ways easily. (Spiral Sleeves Cable Wrapping Tube)
2. Durable,reusable with retained spiral strength.(Plastic Spiral Wrapping Tube Cable)
3. Fix ends of band with cable ties and spiral wire bundles in clockwise direction to complete works.
4. Expand spiral range almost without limit. (Spiral Sleeves Cable Wrapping Tube)
An economical way of cable binding.Easily applied to electric hamess, cables and wire bundles. Cut-to-fit versatility in convenient roll-form.

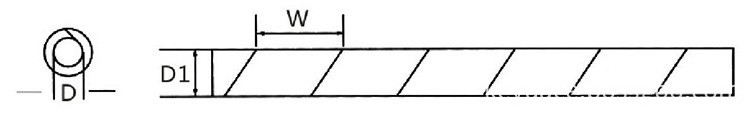

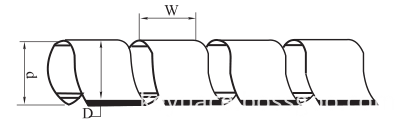

Technical Data
SpecificationSpecifications



Item No Size(mm) Bundle range( Φ mm)

KY06 4 6 7.0 4~20
KY08 6 8 10.8 6~60
KY10 7.5 10 11.4 7.5~60
KY12 9 12 13.9 9~65
KY14 11.5 14 14 10~70
KY16 13.5 16 15 12~75
KY18 15 18 18.2 14~85
KY20 17.5 20 18.5 15~100
KY22 19.5 22 20 20~130
KY25 22.5 25 20 22~135

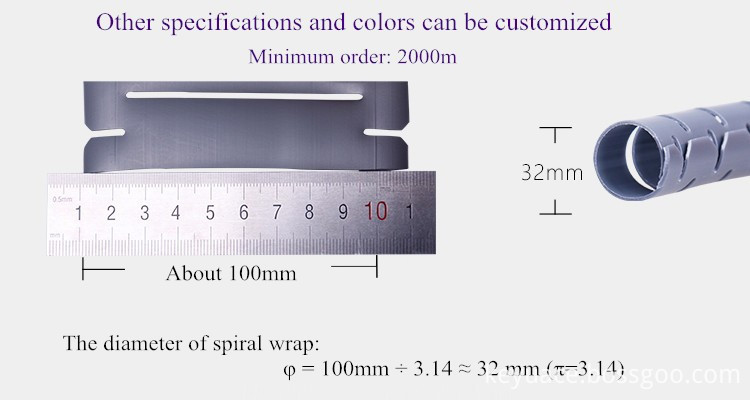

Specification of product

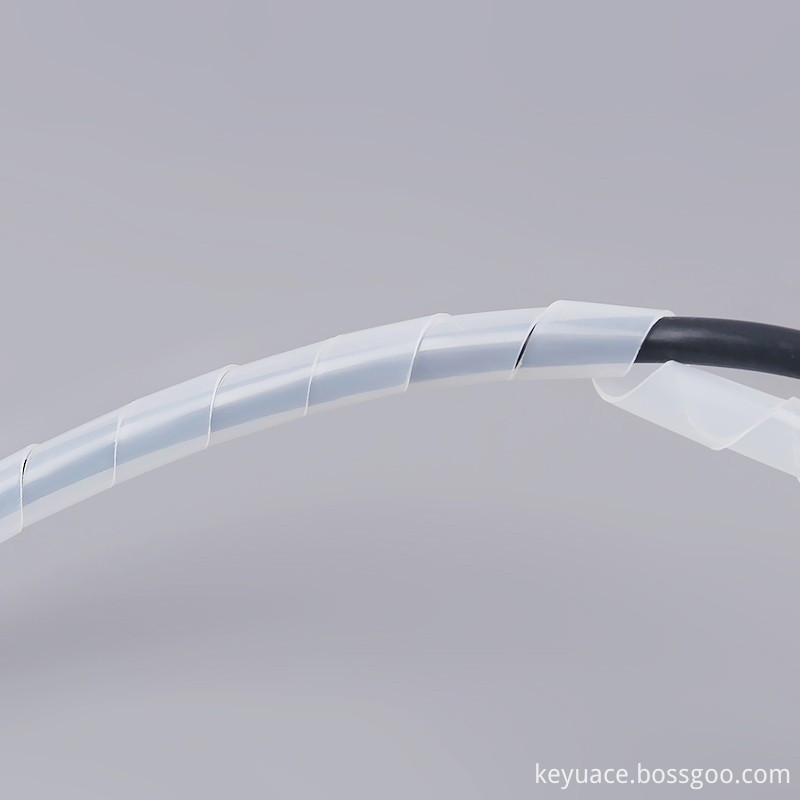

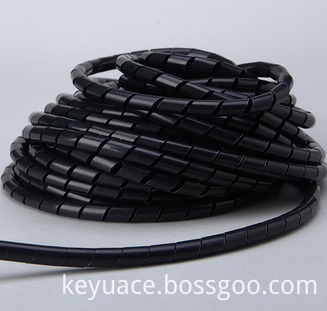

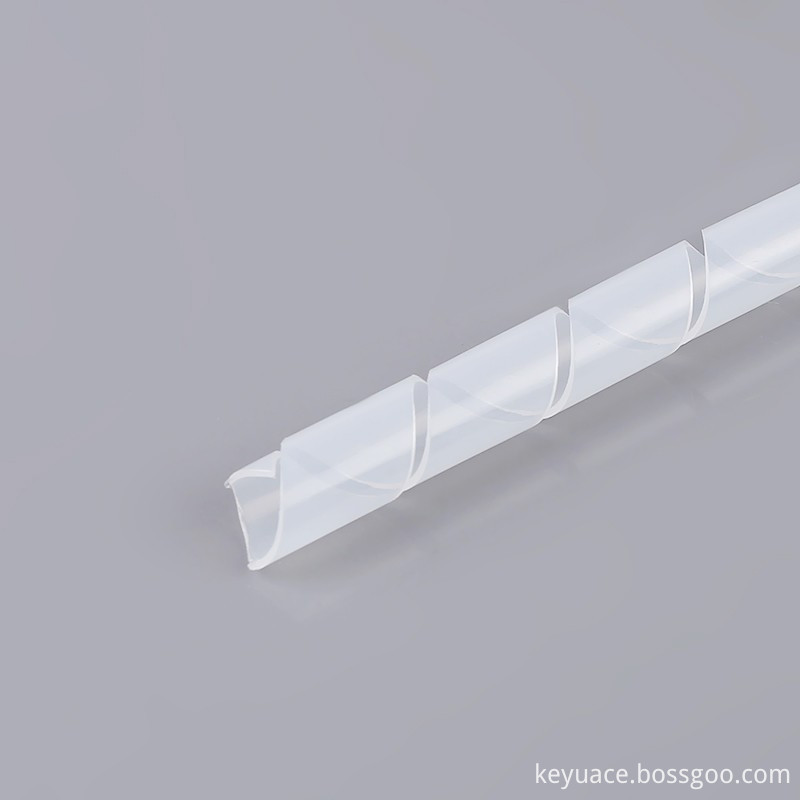

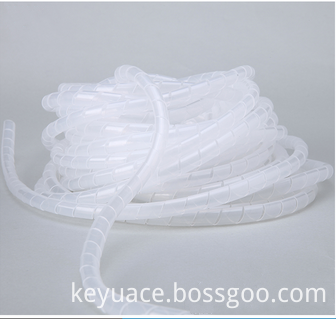

Detailed Images:


Product informationinsulation wire spiral wrapping bands

Wiring Spiral Wrapping BandWiring Spiral Wrapping BandsTransparent Color Insulation Wire Spiral Wrapping BandTransparent Color Insulation Wire Spiral Wrapping Bands

insulation wire spiral wrapping bandinsulation wire spiral wrapping band

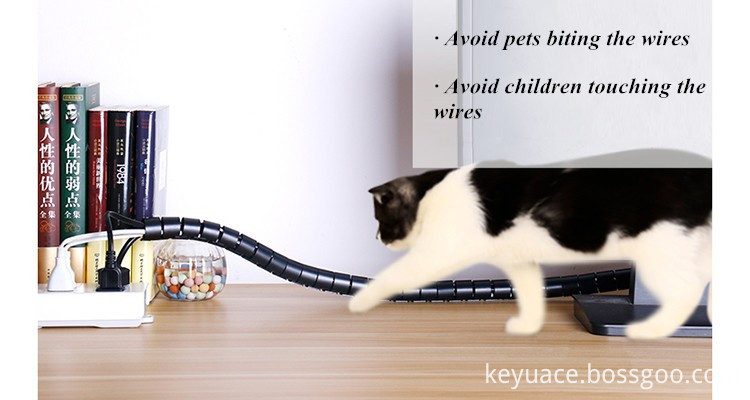

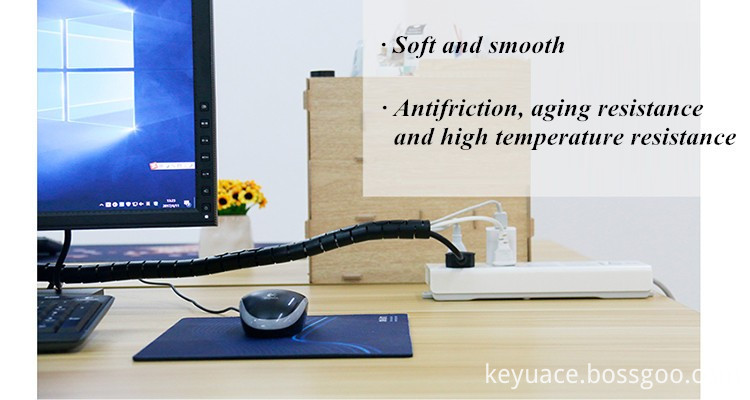

insulation wire spiral wrapping bands for applicationinsulation wire spiral wrapping band for applicationwire spiral wrapping bands

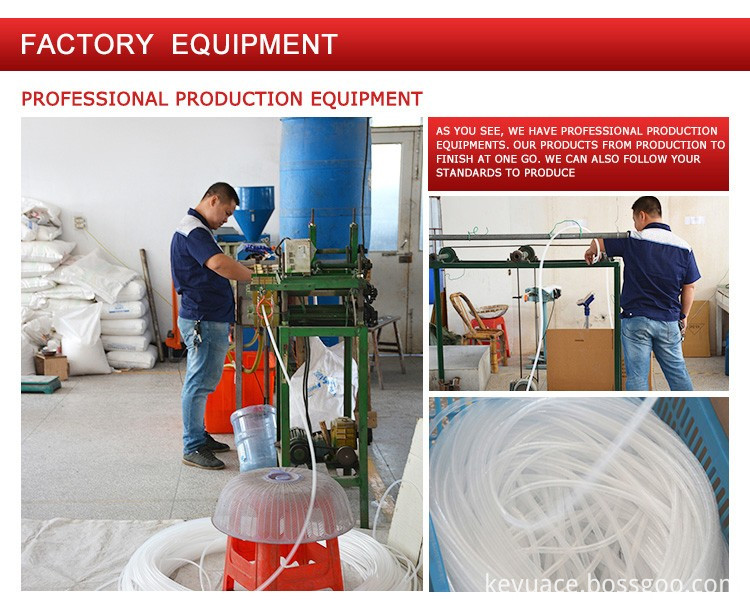

Factory equipment


Packing & Delivery:

Packaging & Shipping
Packaging Details:A.Common Packing: 1Roll + Polybag + Label + Export Carton.
                                 B.Customized Packing: Other packing can be supplied according to
                                 customers request.
Delivery Detail: 15-25 Working days according order quantity.

Packaging & Shipping



packing and delivery


Our Services

1. We are factory. The prices are factory price and competitive.
2. Quick delivery. We have automatic production line, so the production time is much quicker.
3. Good quality. The goods are meet ROHS SGS. They have been delivered to many countries and enjoy good popularity.
4. Good after sale service. The quality is guaranteed for 2 years. If there is any problem, pls tell us and we'll solve for you.


FAQ

1.Q:Do you have your own factory?

   A:Yes,we're manufacturer in china for over 20 years,located in DongGuan City,capital of china electric.

2.Q:How can I visit your factory?

   A:Before you take off your company,please let us know in advance.We will show you the way,or arrange time to pick up you   if possible.

3.Q:Do you provide free sample?

   A:Yes,we always do,but first time you'd better pay the delivery charge.

4.Q:Could you print our company logo on nameplate and package?

   A:Yes,we can do that.

5.Q:Do you accept custom design on size?

   A:Yes,if the size is reasonable.

6.Q:What's your delivery time?

   A:We're factory,so we can efficiently control the production time.

7.Q:What's your MOQ?

   A:No limit.

8.Q:What's your payment?

   A:We accept T/T,L/C,D/A,Western Union,Paypal.

After-Sales Service
For rich OEM experience,we can provide professional solutions for customers.
