- Model NO.: STC Series
- Trademark: KAIJIELI
- Origin: China
- Type: From Stc-3 to Stc-50
- Specification: IEC
- HS Code: 8501
STC series Three-phase AC synchronous Alternator
Used in town, countryside, worksites villages etc, as lighting as well as to be reserved emergency power source.
Three-phase, four wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz, power factor 0.8 lag. We can provide 60Hz and the other voltage's value according to the customers request.
The alternators are made as per standard JB/T8981-1999, as well as in conformity to IEC34-1.
With brush, rotary field, harmonic excitation, IP21, Class B, Power Factor COS0.8, Chinese bearings,
Output range from 3kW to 50kW
| MODEL | Â OUTPUT | Voltage(V) | Current(A) | Power factor | Speed(r/min) | Freq. (Hz) | Pole No. | |
| Type | KVA | KW | ||||||
| STC-3 | 3.8 | 3 | 400/230 | 5.4 | 0.8 | 1500 | 50 | 4 |
| STC-5 | 6.3 | 5 | 9 | |||||
| STC-7.5 | 9.4 | 7.5 | 13.5 | |||||
| STC-8 | 10 | 8 | 14.4 | |||||
| STC-10 | 12.5 | 10 | 18.1 | |||||
| STC-12 | 15 | 12 | 21.7 | |||||
| STC-15 | 18.8 | 15 | 27.1 | |||||
| STC-20 | 25 | 20 | 36.1 | |||||
| STC-24 | 30 | 24 | 43.3 | |||||
| STC-30 | 37.5 | 30 | 54.1 | |||||
| STC-40 | 50 | 40 | 72.2 | |||||
| STC-50 | 62.5 | 50 | 90.2 | |||||
| ENVIRONMENT CONDITIONS | |
| Under the following environment, the generator could running continuously: | |
| Altitude: | not exceed 1000m |
| Cooling air temperature: | -15º C~40º C |
| Relative air humidity: | not exceed 90% |
1)OEM: 28-102 94 AMP/12 Volt Delco 12SI Series 56-94A IR/EF Alternators
2)Lester Nos: 7272, 73, 78, 92, 94; 7830
3)OEM: 28-100 63 AMP/12 Volt Delco 10SI Series 37-63A IR/EF Alternators
4)OEM: 28-8304 WAI: 1-2509-01MI LESTER: 13893 Mitsubishi IR/IF Alternators Used On: (2005-02) Honda
5)OEM: 28-104 108 AMP/12 Volt "Delco 15SI Series 70-105A; 17SI Series 97-108A IR/EF Alternators
6)OEM: 28-105 120 AMP/12 Volt "Delco 17SI Series 120A IR/EF Alternators
7)OEM: 28-106 63 AMP/12 Volt Delco 10DN Series 32-63A ER/EF Alternators
8)OEM: 28-205 LESTER: 7146 7164 Delco 1100499, 1100748, 1105063, 1105076 Delco 10DN Series 40A/24V ER/EF; 10SI/102 Series 18A/12V IR/EF 9)OEM: 28-206 75 AMP/12 Volt Ford 2G Series 75A IR/EF Alternators
10)OEM: 28-207 LESTER: 7744, 7745, 7746 80 AMP/12 Volt Ford 2G Series 80A IR/EF
11)OEM: 28-209 130 AMP/12 Volt Ford 3G Series 110-130A/12V IR/IF
12)OEM: 28-210 130 AMP/12 Volt Ford 4G Series IR/IF Alternators
13)OEM: 28-211 135 AMP/12 Volt Ford 6G Series 130-135A IR/IF Alternators
14)OEM: 28-212 110 AMP/12 Volt Ford 6G Series 95-110A IR/IF Alternators
15)OEM: 28-505 160 AMP/12 Volt Leece-Neville / Motorola 8LHA, 8LHP Series
16)OEM: 28-8102 70 AMP/12 Volt "Hitachi 70A IR/EF Alternators
17)OEM; 28-8103 90 AMP/12 Volt " Hitachi 80-90A IR/IF Alternators
18)OEM: 28-8104 70 AMP/12 Volt Hitachi 60-70A IR/IF Alternators
Used On: (2001-91) Honda, Isuzu, Nissan
19)OEM: 28-8105 110 AMP/12 Volt Hitachi 100-110A IR/IF Alternators
Used On: (2000-96) Infiniti, Nissan
20)OEM: 28-8106 90 AMP/12 Volt Hitachi 90A IR/IF Alternators
Used On: (2002-98) Honda, Isuzu
21)OEM: 28-8202 70-100 AMP/12 Volt "Nippondenso 70-100A ER/IF, IR/IF Alternators Used On: (2002-85) Chevrolet, Chrysler, Dodge, Eagle, Geo, Isuzu, Jeep, Lexus, Plymouth, Toyota, Volvo; Caterpillar
22) OEM: 28-8203 130 AMP/12 Volt "Mitsubishi ER/IF Alternators
Used On: (2001-98) Chrysler, Dodge, Plymouth
23) OEM: 28-8204 100-125 AMP/12 Volt " Nippondenso 100-125A ER/IF, IR/IF Alternators Used On: (2005-88) Acura, Chrysler, Dodge, Jaguar, Jeep, Lexus, Plymouth, Toyota
24) OEM: 28-8205 80-100 AMP/12 Volt Nippondenso 80-100A IR/IF Alternators
Used On: (2002-90) Acura, Honda
25) OEM: 28-8207 130-140 AMP/12 Volt "Nippondenso 130-140A ER/IF, IR/IF Alternators Used On: (2005-97) Chrysler, Dodge, Honda, Jeep, Plymouth
26)OEM: 28-8208 117 AMP/12 Volt Nippondenso 117A ER/IF Alternators
Used On: (2003-99) Dodge, Jeep
27)OEM: 28-8209 70 AMP/12 Volt Nippondenso 60-70A/12V IR/IF Alternators

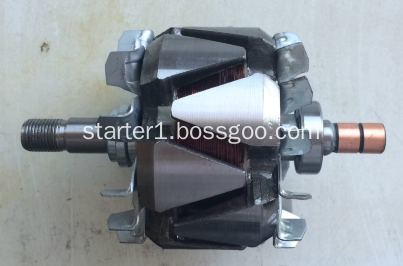

Alternator Rotor, Rotor Of Alternator, Auto Rotor
NINGBO ZHONGWANG AUTO FITTINGS CO.,LTD , http://www.autostarter-alternator.com
