Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump

Model NO.: MSG/MSGH
Pump Casing Combined: Horizontal Split Pumps
Mounting Height: Suction Centrifugal
Impeller: Closed
Usage: Pump, Pumps, Ash Pumps, Circulating Pump
Seal: Gland Shaft Seal or Mechanical Seal
Trademark: SZ
Transport Package: Wooden Crates
Specification: CE, SGS
Origin: Hebei, China
HS Code: 84138100
Model NO.: MSG/MSGH
Pump Casing Combined: Horizontal Split Pumps
Mounting Height: Suction Centrifugal
Impeller: Closed
Usage: Pump, Pumps, Ash Pumps, Circulating Pump
Seal: Gland Shaft Seal or Mechanical Seal
Trademark: SZ
Transport Package: Wooden Crates
Specification: CE, SGS
Origin: Hebei, China
HS Code: 84138100
Product features:

Type MSG/MSGH gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosives_ludge in metal melting, Dredging in dredger and course of rivers, and other fields. Type MSGH pumps are of high-head ones.

Performance Parameter



Type


  Warman Capacity
(l/s)
Head
(m)

Speed
(r/min)
Eff
(%)

NPSHr
(m)
Outlet Dia
(mm)
Inlet Dia
(mm)
Max.Dia
of
Flowed Partice
(mm)
MSG-4D 6/4D-G 10-70 3.5-51 600-1400 30-50 2.5-3.5 100 150 82
MSG-6E 8/6E-G 38-160 10-48 800-1400 50-60 3-4.5 150 200 127
MSG-8S 10/8S-G 60-272 13-50 500-1000 45-65 3-7.5 200 250 178
MSG-8F 10/8F-G 60-272 13-50 500-1000 45-65 3-7.5 200 250 178
MSG-10F 12/10F-G 100-420 11-58 400-850 50-70 2-4.5 250 300 220
MSG-10G 12/10G-G 100-420 11-58 400-850 50-70 2-4.5 250 300 220
MSG-12G 14/12G-G 140-880 6-66 300-700 60-68 2-8 300 350 241
MSGH-10G 12/10G-GH 170-620 28-78 350-700 60-72 2-8 250 300 210
MSGH-8S 10/8S-GH 110-360 18-80 500-950 60-72 2-5 200 250 180

Construction design:


Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump


Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump
 Gravel Pump Application Sucess Cases :
Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump


GUARANTEE OF QUALITY:
The Seller shall guarantee that the goods are made of the best materials and of first class workmanship, brand new, and comply in all respects with the quality and specifications and performance as stipulated in this Contract. The Seller shall guarantee that the goods, when correctly mounted and properly operated and maintained, shall give satisfactory performance for a period of 12 months after acceptance protocol's signature.

Why choose us?

1.Competed Price List for wholesales.
2. We have a research and development team, we can choose appropriate pump  according to your working conditions.
3.Supporting OEM service for board package
4.Over many time Quality Testing for each spare parts.

  Product features:

Type MSG/MSGH gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosives_ludge in metal melting, Dredging in dredger and course of rivers, and other fields. Type MSGH pumps are of high-head ones.

Performance Parameter



Type


  Warman Capacity
(l/s)
Head
(m)

Speed
(r/min)
Eff
(%)

NPSHr
(m)
Outlet Dia
(mm)
Inlet Dia
(mm)
Max.Dia
of
Flowed Partice
(mm)
MSG-4D 6/4D-G 10-70 3.5-51 600-1400 30-50 2.5-3.5 100 150 82
MSG-6E 8/6E-G 38-160 10-48 800-1400 50-60 3-4.5 150 200 127
MSG-8S 10/8S-G 60-272 13-50 500-1000 45-65 3-7.5 200 250 178
MSG-8F 10/8F-G 60-272 13-50 500-1000 45-65 3-7.5 200 250 178
MSG-10F 12/10F-G 100-420 11-58 400-850 50-70 2-4.5 250 300 220
MSG-10G 12/10G-G 100-420 11-58 400-850 50-70 2-4.5 250 300 220
MSG-12G 14/12G-G 140-880 6-66 300-700 60-68 2-8 300 350 241
MSGH-10G 12/10G-GH 170-620 28-78 350-700 60-72 2-8 250 300 210
MSGH-8S 10/8S-GH 110-360 18-80 500-950 60-72 2-5 200 250 180

Construction design:


Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump


Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump
 Gravel Pump Application Sucess Cases :
Suction Centrifugal Sludge Dredging Gravel Sand Slurry Pump


GUARANTEE OF QUALITY:
The Seller shall guarantee that the goods are made of the best materials and of first class workmanship, brand new, and comply in all respects with the quality and specifications and performance as stipulated in this Contract. The Seller shall guarantee that the goods, when correctly mounted and properly operated and maintained, shall give satisfactory performance for a period of 12 months after acceptance protocol's signature.

Why choose us?

1.Competed Price List for wholesales.
2. We have a research and development team, we can choose appropriate pump  according to your working conditions.
3.Supporting OEM service for board package
4.Over many time Quality Testing for each spare parts.



93% Purity Industrial Oxygen Generator is the most economical solution to provide site oxygen. This purity oxygen is suitable for many applications such as combustion assistance, metal cutting, waste water treatment, fish farming,etc.  It is ideal replacment of cylinder oxygen. Cylinder oxygen is expensive and inconvenient. On-site 93% purity Industrial Oxygen Generator is installed on one skid, it is easy for transportation and installation, also its operation is very simple, with a click of start on the touch screen, machine start to run.


Gamma Oxygen Generator Features

Skid structure, easy installation.

When oxygen generator reaches site, just connect the Air Compressor into main machine, then with one simple touch on the start, the whole machine starts to work, no need for site installation, site training,etc. No need for Gamma engineers go to site, further saving customer`s cost.



Special filling device

Making the fill of molecular sieve achieve max density and evenness. Getting rid of molecular sieve creeping and wearing and [tunnel effect" from the root. Therefore the molecular sieve has longer lifetime, higher utility ratio and lower material air consumption.



Special gas distributors

Equipped at both top and bottom side of the adsorption tower

adapting multi-layer hole plate structure and special hole arrangement. These makes gas distribution within tower more efficient.



Pipeline flow speed control technology

Making the molecular sieve avoid damage caused by collision by [boiling" at the top of adsorption tower, no need extra pressing device.



Advanced middle bed layer pressure balancing process

Can be regarded as a four tower structure with series connection of pre-adsorption stage and clean adsorption stage, achieving higher purity oxygen.

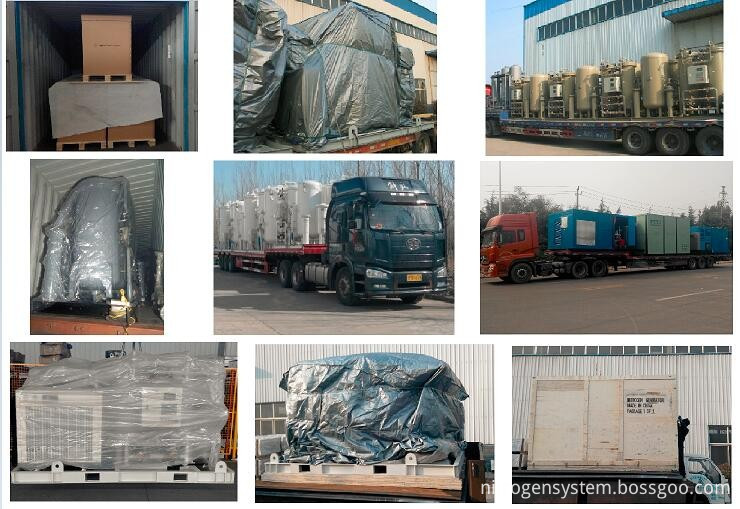

Packing and shipping

Package Details



After sales service

 Free customer site installation guidance, free training for operation and maintenance. No need to pay for Gamma engineer's site service.



One years operation warranty. Should any trouble happened, Gamma provide and send parts free of charge. If necessary, Gamma engineer comes to site at our own cost.
