Pn16 Stainless Steel Flanged Water Pump Foot Valve

  • Model NO.: longva2379
  • Size: 1"-12"
  • Pressure: Pn6,Pn10,Pn16,Pn25,Class 150lb
  • Transport Package: Plastic Bag Inner Packing, Carton, Plywood Case
  • Origin: Wenzhou Zhejiang China
  • Quality: High Quality with Competitive Price
  • Material: Stainless Steel,Carbon Steel
  • Trademark: Longva OEM
  • Specification: CE ISO9001
  • HS Code: 8481804090
Pn16 Stainless Steel Flanged Water Pump Foot Valve

Foot valve is a kind of energy-saving valve, usually installed at the bottom of pump suction pipe, to prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs in the valve cover, so the pipe will not be easily clogged up.
Foot valve consists of bonnet, disc, bush, seal-ring, etc. Water enter into the valve body through bonnet. Under the influence of flow pressure, disc will be opened. When stop, pressure in the outlet pipe will close the disc instantly, water will not flow back to water source. It effects the functions of smooth pumping and saves water loss.

Size 1"-12",  DN25 - DN300
Material SS304,carton steel
Standard ISO, DIN, IDF, SMS, 3A
Connection End   thread, flange
Working Principle by manual
Pressure 0.6-2.5Mpa
Pn16 Stainless Steel Flanged Water Pump Foot Valve
Pn16 Stainless Steel Flanged Water Pump Foot Valve

TEE

Size

1/2"-72" DN15-DN2000

Wall thickness

SCH5-SCH160XXS

Standard

ISO,SNSI,JIS,DIN,ASME,Sh3408 SH3409 HG/T21635 HG/T05010

Material

Carbon Steel like A234 WPB, 20G, A105, Q235A/B and alloy steel like ASTM A234 WP5, WP11, WP12

Executive Standard

ASME B 16.9, DIN, JIS, BS, etc

Type

Seamless

Welding Method

Butt Welding

Surface Treatment

grit blasting, black or transparent painting or according to the requirement of client

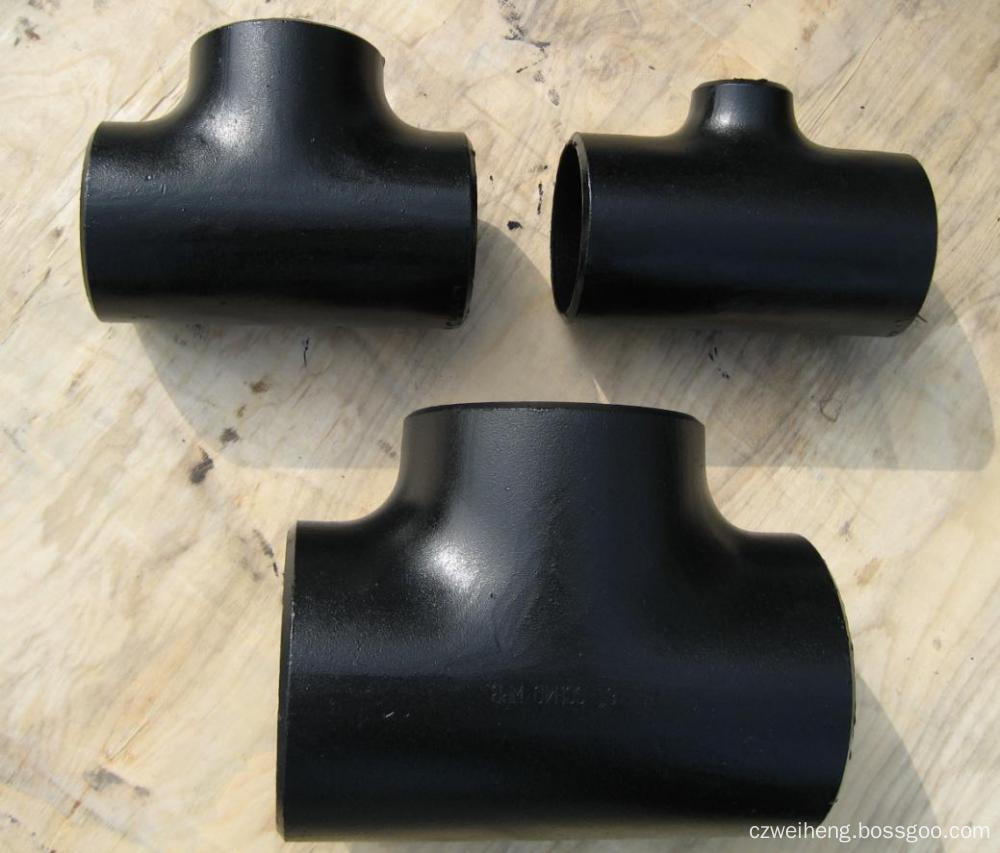

carbon steel tee

Pipe Tee

Stainless Steel Tees, Carbon Steel Tee, Galvanized Steel Tee, Steel Pipe Tee

Cangzhou Weiheng Pipe Industry Co.,Ltd , http://www.czweiheng.com
