Double Disc Flap Wafer Dual EPDM Seat Check Valve

1- Body/Bonnet: GGG40/50

2- Stem: SS420/431

3- Bolts/Nuts/Spring: SS304

4- DISC: CF8

5- Epoxy Resin coating internal & external, thickness above 250 micron

7- Wafer or Flanged or Lugged

8- Work pressure: PN10/16; Size range: 1-1/2" to 32"


Company Profile
Suzhou Walter Flow Control Equipment Co., Ltd. are a professional company specializing in fluid & firefighting equipment.
We do, and always will, fashion our long time business relationships from advanced technology, excellent quality and good service.
Walter Flow Control supplies products with FM, UL, CE and all other relevant certificates for use in Water Reticulation and Treatment Systems, Fire-fighting Projects, High Rise Buildings, the Oil, Gas and Chemical Industries etc.
Company Products
Valves: Gate Valve, Butterfly Valve, Check Valve, Automatic Hydraulic Control Valve, Air Release Valve, Globe Valve, Ball Valve, Strainer, Pipeline products, etc.
Firefighting: Fire Sprinklers, Wet Alarm Check Valve, Deluge Valve, Water Flow Detector, Foam Extinguisher System, Gas Extinguisher System and Fire Hydrant System, Fire Hose, Fire Hose Reel, Fire Monitor, etc.
Standard & Certificates
Walter products are design acc. to DIN, BS, ANSI, AWWA, EN, ISO,AS, API standard and relevant products can be provided with FM approval, UL listed, CE certificates.
Company Philosophy
Processing every enquiry efficiently
Treating every order seriously
Serving every customer considerately
Choose us, reap success

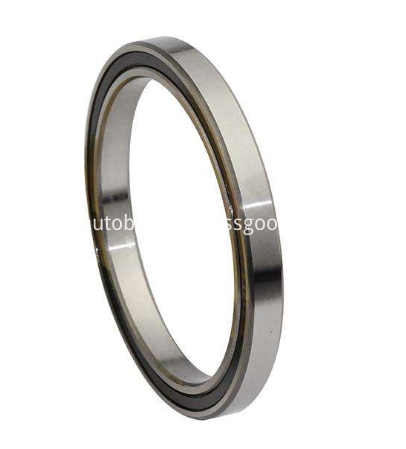

Industrial robot bearings mainly include thin-walled bearings, cross cylindrical roller bearings, harmonic reducer bearings and joint bearings, but mainly cross roller bearings. Structural features of cross roller bearings in welded robot joints: cylindrical rollers are perpendicular to each other in the inner and outer raceway of the bearing, and a single bearing can bear the common load of radial force, bidirectional axial force and overturning moment simultaneously. The bearing has large bearing capacity, good rigidity, high rotation accuracy, easy installation, saving space, reducing weight, significantly reducing friction and providing good rotation accuracy. It is possible to make the mainframe light and miniaturized.

With the rapid development of China's industrialization, industrial robots are becoming more and more popular in industrial applications. The main part of the industrial robot, bearing, is being paid more and more attention.
The main structure is as follows: the whole type, the outer ring separation type and the inner ring separation type. In order to prevent pollution and leakage, sealing rings are installed on both sides of the bearing. Because of its unique lightweight structure and good performance, cross roller bearings can simplify design and save space, and are widely applied in robot joints and rotary units, precision turntables, aerospace and other fields. In order to make serial production of industrial robots cross rolling bearings, the technical standard of cross roller bearings is formulated, which has the leading technical advantage in line with international standards.

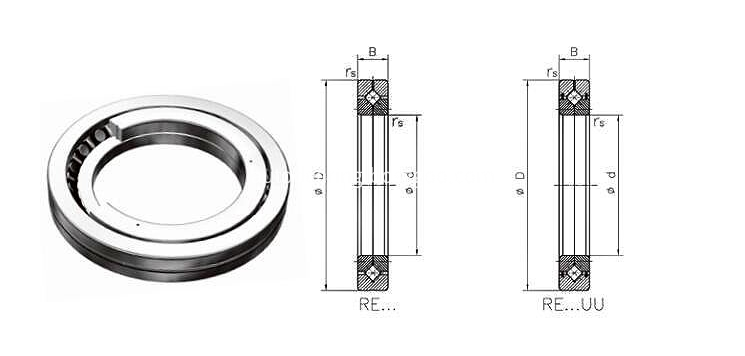

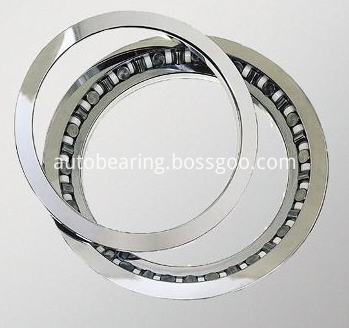

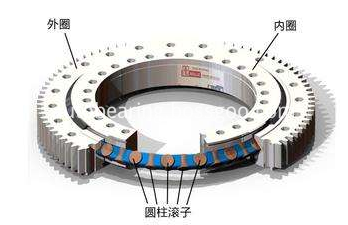

Cross roller bearings are two row cylindrical rollers on 90 degree V raceway, which are vertically arranged across each other through nylon isolation blocks. Therefore, cross roller bearings can withstand multiple loads such as radial load, axial load and torque load.
The bearing has unique structure, good performance, simplified design and save installation space. It has been widely applied in welding robot joint and rotary unit, precision turntable and other fields.


Robot Bearing

Robot Bearing,Small Ball Bearing For Robot,Thin Section Ball Bearing,Cross Roller Slewing Bearing
